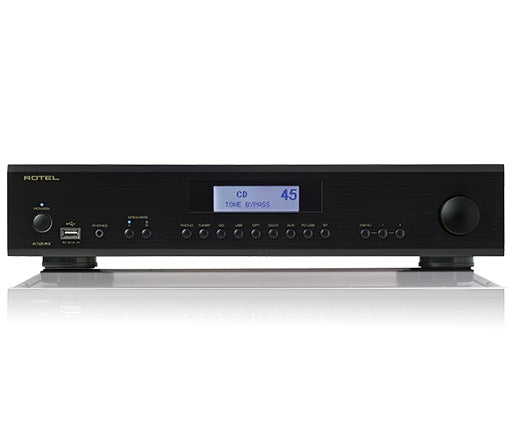

Rotel A12 MKII Stereo Amplifier with Bluetooth in Black
R 26,890.00
INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%
DAMPING FACTOR
220
INPUT SENSITIVITY
Line Level Inputs: 230mV
Digital Inputs: 0dBfs
Phono Input (MM): 3.4mV
INPUT IMPEDANCE
Line Level Inputs: 24kΩDigital Inputs: 75Ω
Phono Input (MM): 47kΩ
INPUT OVERLOAD
Line Level Inputs: 4V
Phono Input: 50mV
PREOUT LEVEL
1.2V
OUTPUT IMPEDANCE
470Ω
TONE CONTROLS
±10dB at 100Hz / 10kHzDIGITAL INPUT
SPDIF LPCM (Up to 24-bit/192kHz)PC-USB
USB Audio Class 1 (up to 24-bit/96kHz)USB Audio Class 2 (up to 32-bit/384kHz)*
*Driver installation required
Roon Tested
DIMENSIONS (W × H × D)
430 × 93 × 345mm17" × 3.6" × 13.5"
FRONT PANEL HEIGHT
80mm (3.15")POWER REQUIREMENTS
120V, 60HzPOWER CONSUMPTION
230WSTANDBY POWER CONSUMPTION
<0.5W8.76kg (19.31lbs.)
BTU RATING (4Ω, 1/8th power)
632 BTU/h
MAXIMUM POWER OUTPUT
120W/Ch (4Ω)
CONTINUOUS POWER OUTPUT
60W/Ch (8Ω)
TOTAL HARMONIC DISTORTION (THD)
<0.018%
FREQUENCY RESPONSE
Line Level Inputs: 10Hz - 100kHz, 0±0.5dB
Digital Inputs: 10Hz - 90kHz, 0±2dB
Phono Input: 20Hz - 20kHz, 0±0.5dB
S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 100dB
Digital Inputs: 103dB
Phono Input: 90dB
