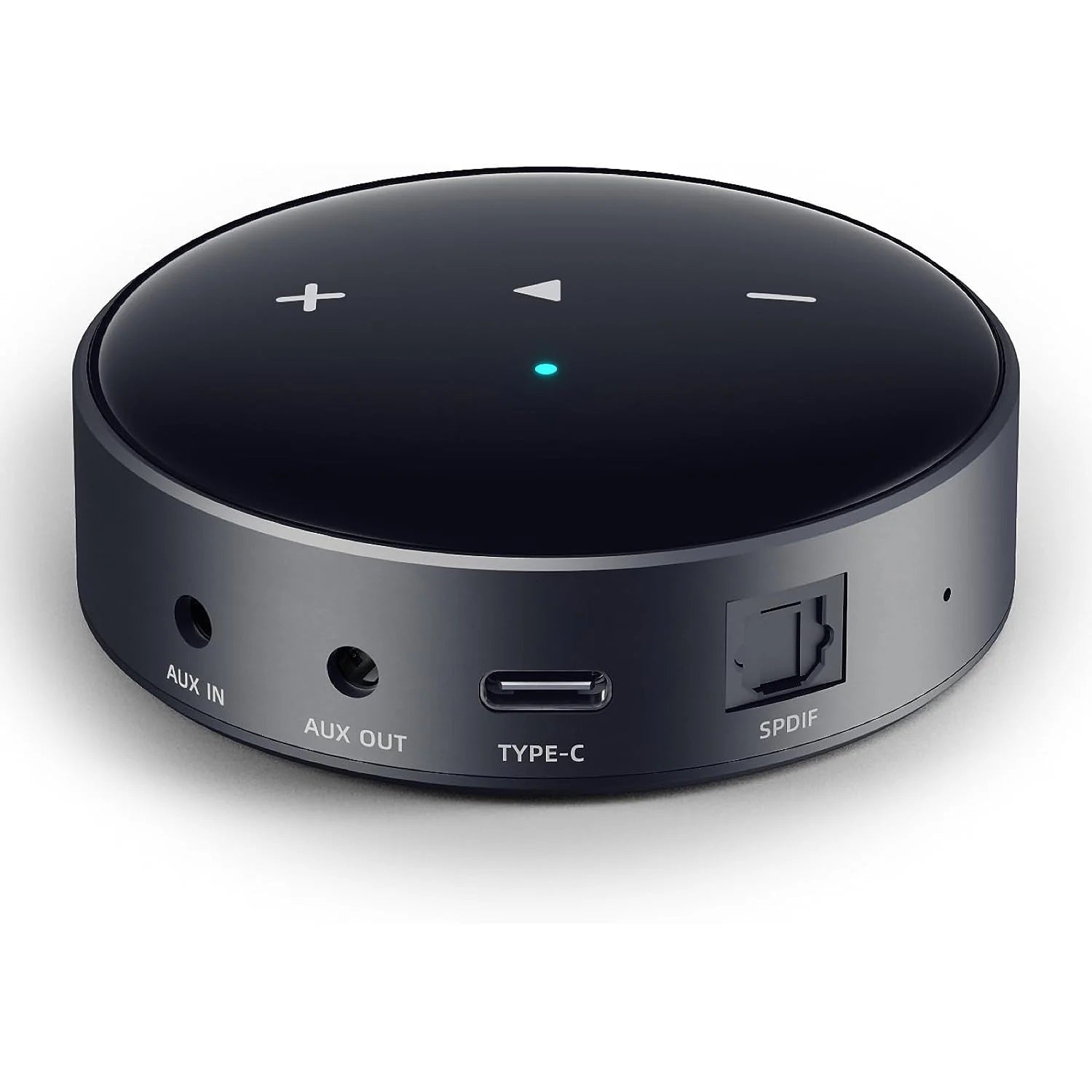

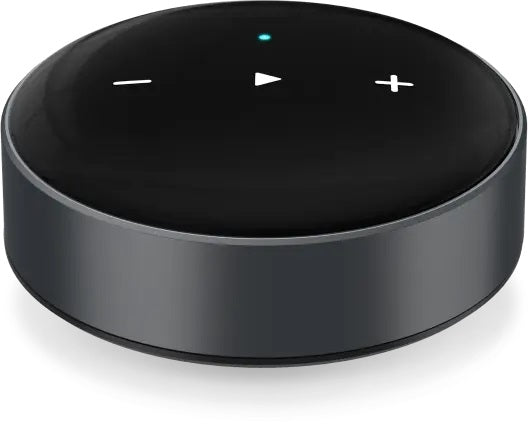

Wiim Mini Wireless Audio Streamer
High-Res Audio
WiiM audio devices provide the capability to play Hi-Res lossless audio content from Spotify, Amazon Music, TIDAL, Deezer, Qobuz, and more. It supports up to 192kHz, 24-bit audio output which is the same as artist recordings in the studio. The integrated TI stereo DAC provides high-quality analog audio output with 106-dB SNR, dynamic range, and -92dB THD+N performance, outstanding in all audio categories.
Multi-room and stereo pairing
Use the WiiM Home app to play perfect audio-synchronized music throughout your home. With our hardware, algorithm, and software optimization, we can achieve less than 150uS (0.00015s) synchronization accuracy among speakers as long as your speakers are in the same wireless network.
Gapless Playback
Precise gapless playback is important to your listening experience. With precise gapless playback, the playback timing is guaranteed to be identical to the source. There are no gaps or overlaps (crossfading) between successive tracks. The gap will be very noticeable in " continuous " music such as live concert recordings, some classical music, etc.
Adaptive EQ
Breakthrough listening experience requires both high-res audio content and a high-quality playback device . When adaptive EQ is enabled, the music genre information and other tags included in the audio content are used to adjust the frequency in real time by bringing in rich audio to capture every music detail or make human voices clearer in the podcast.
Dimensions and Weight

Dimensions:69 × 69 × 24 mm

Weight:48g
Audio Codec
MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG
Wi - Fi
Dual band Wi-Fi supports 802.11 a/b/g/n/ac 2.4 GHz and 5 GHz network
Bluetooth
Bluetooth 5.2, SBC and AAC codec, BT receiver and transmitter (with SW update)
Line in
1Vrms
Line out
Line in to Line out:
Power Output=2Vrms
THD+N Ratio=0.009%
SNR=102dB
Crosstalk=-106dB
Dynamic Range=96dB
BT in to Line out:
Power Output=2Vrms
THD+N Ratio=0.009%
SNR=102dB
Crosstalk=-106dB
Dynamic Range=96dB
SPDIF
Line in to SPDIF out:
Power Output=-3dBFS
THD+N Ratio=0.005%
SNR=102dB
Crosstalk=-103dB
Dynamic Range=97dB
BT in to SPDIF out:
Power Output=0dBFS
THD+N Ratio=0.005%
SNR=297dB
Crosstalk=-364dB
Dynamic Range=213dB
Power Supply
5V,1A

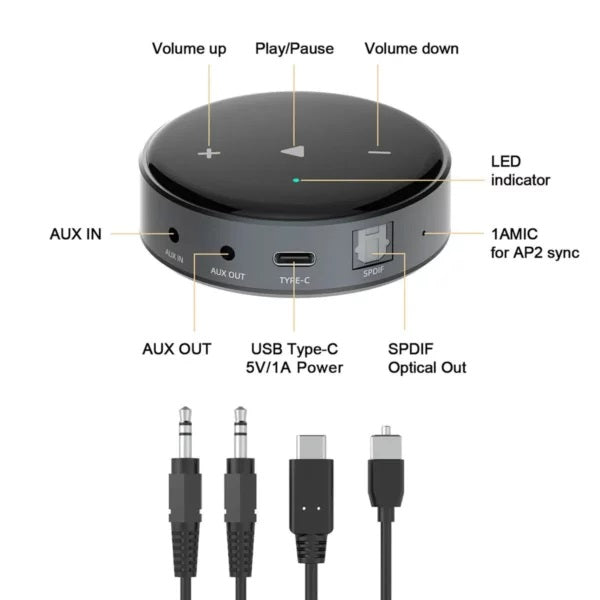

LED
Three color status LED - Red, Green and White.
Button
Capacitive touch - Play/Pause, Volume+, Volume-
