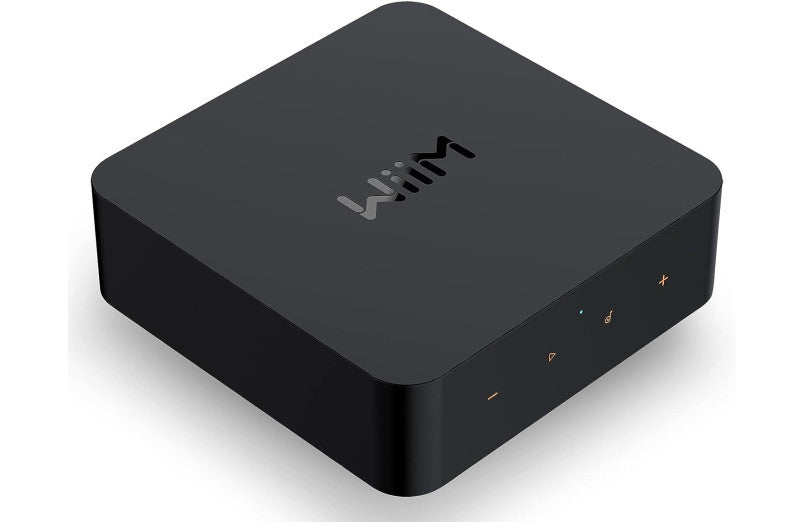

WiiM Pro Plus Network Audio Streamer

Dimensions and Weight

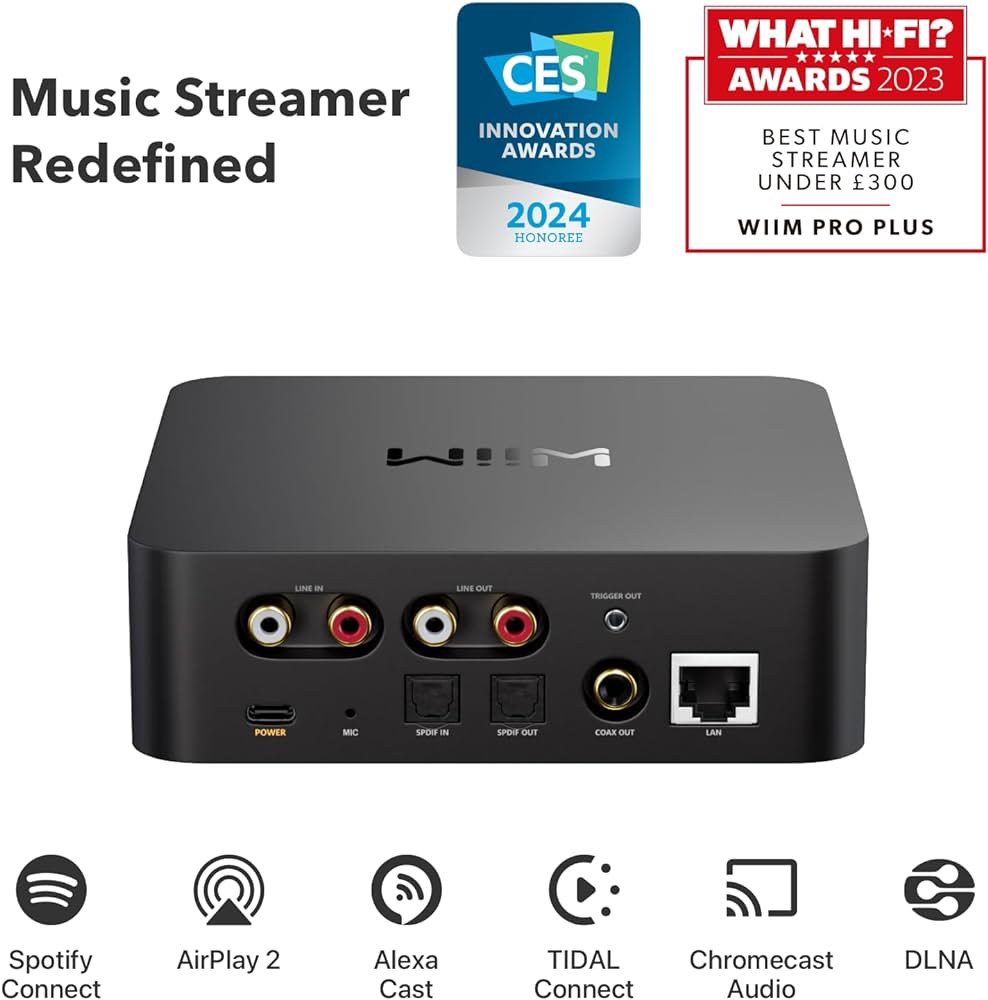

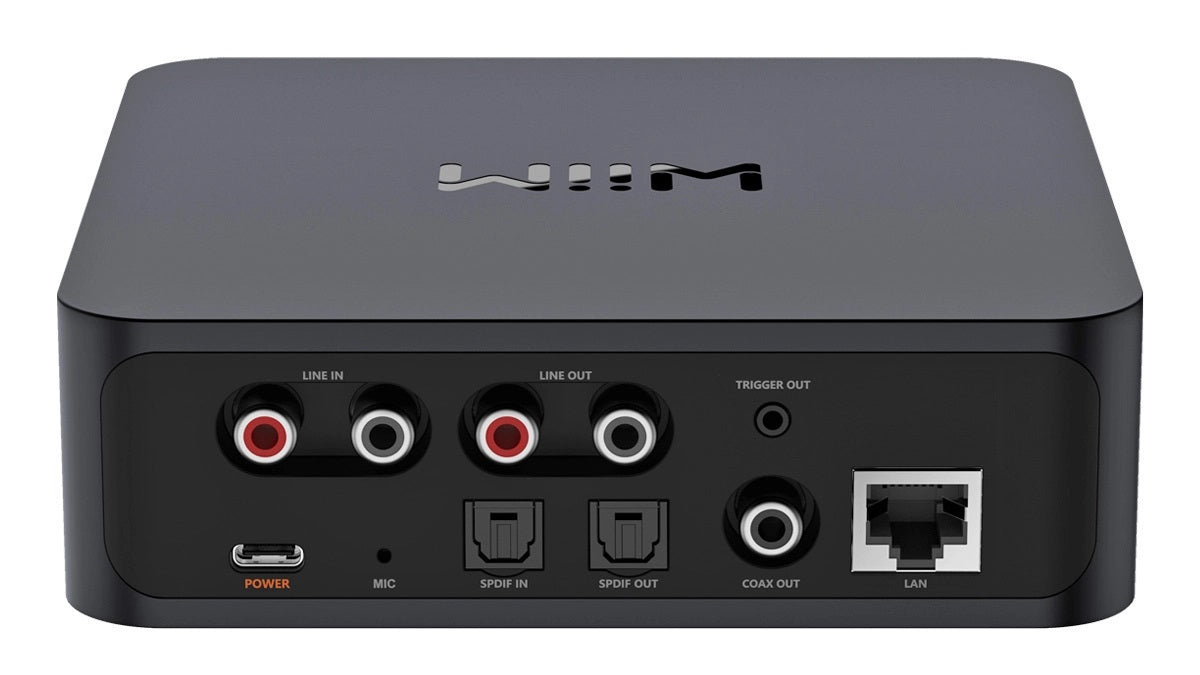

Audio Input

1 x Analog RCA Line input
1 Vrms
48kHz/24-bit
SNR 91dB
1 x SPDIF in Optical, up to 192kHz/24-bit

Analog Audio Output

1 x Analog RCA Line output,
1 x Digital optical (SPDIF) output,
1 x Digital Coaxial output,
up to 384kHz/32-bit

Internal DAC IC

TI Burr-Brown PCM5121

102dB

Network

802.11 b/g/n/ac 2.4 GHz and 5 GHz dual bands Wi-Fi
10/100M Ethernet

Bluetooth

Bluetooth 5.1

Digital Audio Output

Bit-perfect output, up to 192 kHz, 24-bit with digital optical or coaxial output.

Audio Codec

MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG

Protocol

AirPlay 2, Chromecast Audio, DLNA, Spotify Connect, TIDAL Connect, Amazon Music Casting, Qplay 2.0, Roon Ready

Streaming Services in App

Spotify, Amazon Music, Deezer, Tunein, Tidal, Qobuz, SoundCloud, Pandora, iHeartRadio, vTuner, Napster, Sound machine, etc.

Power Input

USB Type-C, requires 5V, 1.5A or higher
Bundled adapter: 5V, 2A
