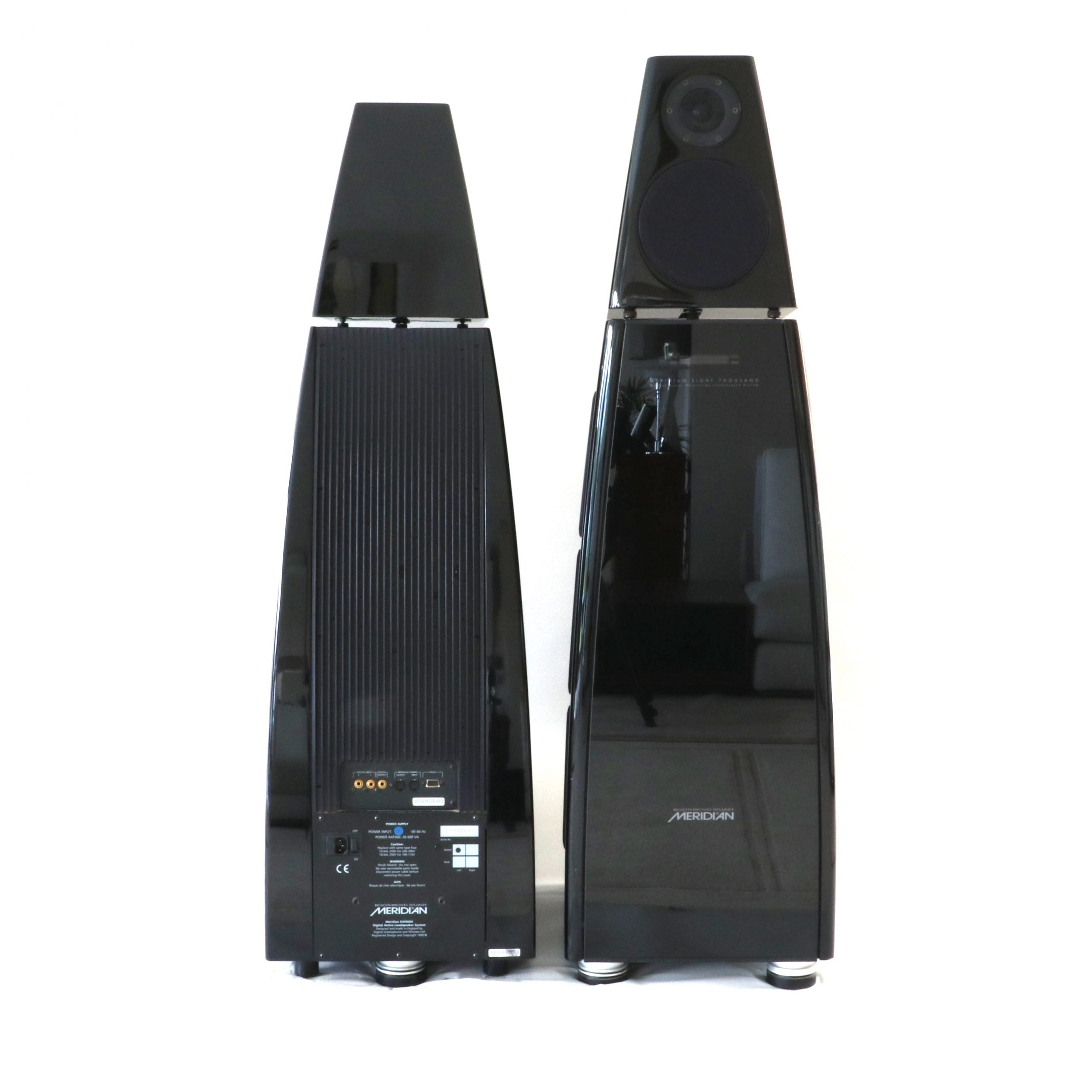

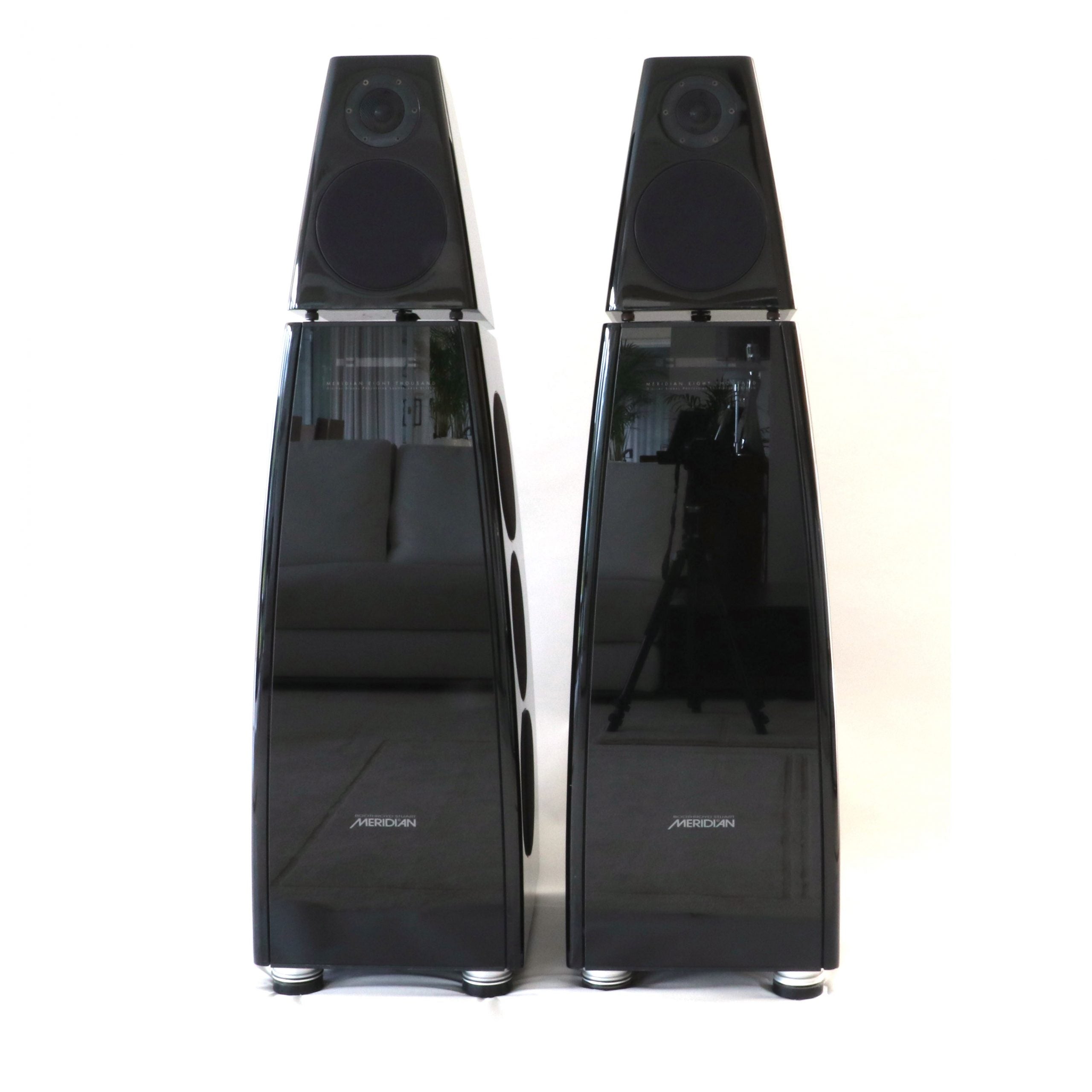

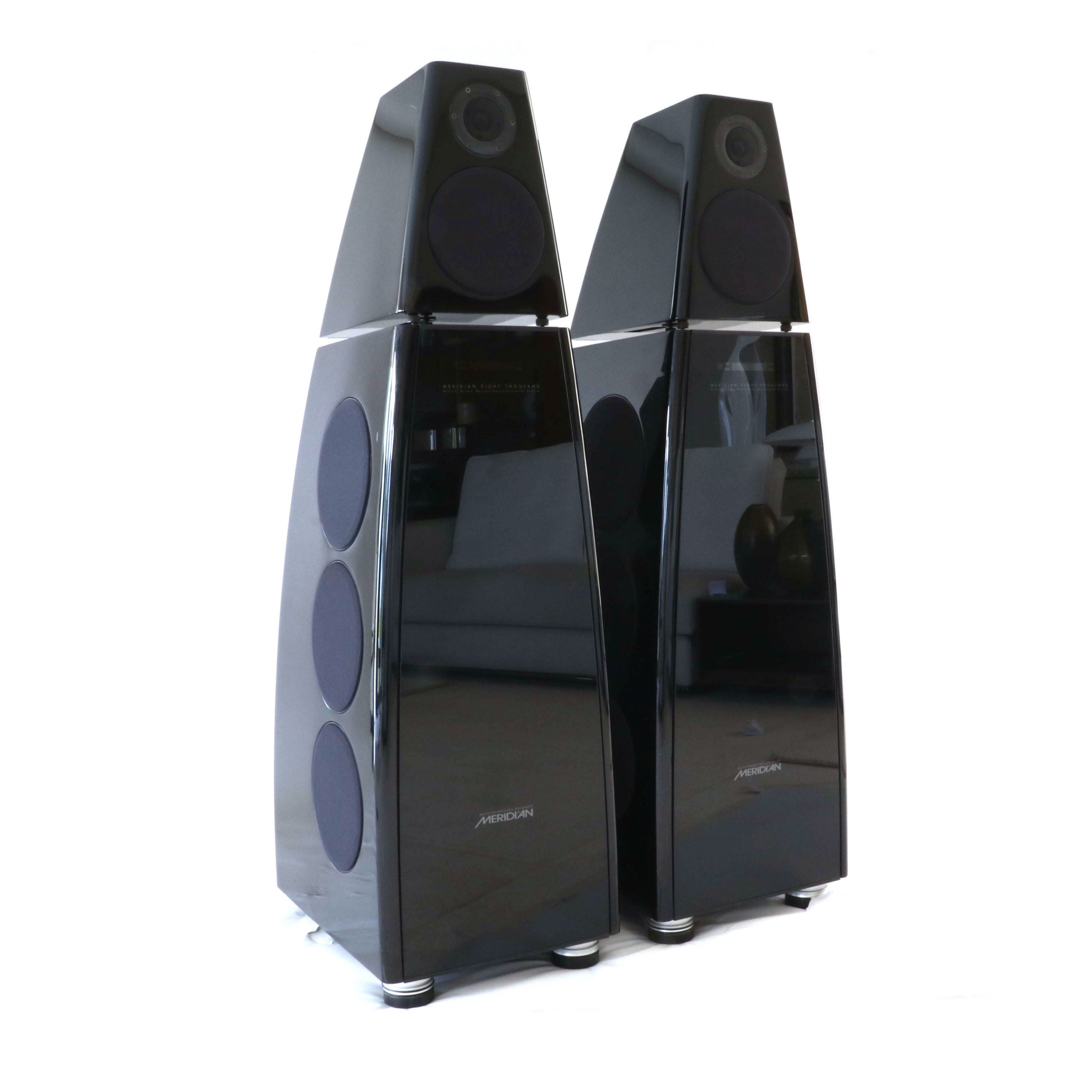

Meridian DSP8000.2 Piano Black
R 1,800,000.00
AUDIO INPUTS
Meridian SpeakerLink (RJ45) & RCA phono digital inputs accepting 32kHz to 96kHz sampling rates at up to 24-bit, with MHR support
AUDIO OUTPUTS
Meridian SpeakerLink (RJ45) & RCA phono digital outputs delivering 32kHz to 96kHz sampling rates at up to 24-bit, with MHR support
PERFORMANCE
Peak SPL: 120dB at 1m
Noise less than 15dB SPL
Frequency response in-room within 3dB: 20Hz to over 20Hz
AMPLIFIERS
5 x 150w (750w)
Overall distortion typically <0.02% at any frequency or level.
BASS DRIVERS
200mm x 6 polypropylene long-throw
MID DRIVER
160mm polypropylene
TWEETER
25mm (1”) aluminium composite dome tweeter, silver wire voice-coil, dual magnet, semi-hornloaded
DSP FEATURES
FIFO memory buffer input for the lowest possible jitter from almost any source.
Linear-phase mid–top crossover; 6th-order Linkwitz-Riley bass–mid crossover.
Bass protection.
All upsampling and processing performed by a 150MHz digital signal processor (DSP)
Hybrid analogue/digital volume control
Balance control with proportional delay compensation
DISPLAY
Eight-character display with additional status indicators; can be blanked during use
DIMENSIONS / WEIGHT
HEIGHT: 1350mm (Without feet/spikes)
WIDTH: 158mm tapering to 400mm
DEPTH 210mm tapering to 528mm
FOOTPRINT (W x D): 400mm x 528mm
WEIGHT: 105kg
POWER
20VA standyby; 920VA max
Meridian SpeakerLink (RJ45) & RCA phono digital inputs accepting 32kHz to 96kHz sampling rates at up to 24-bit, with MHR support
AUDIO OUTPUTS
Meridian SpeakerLink (RJ45) & RCA phono digital outputs delivering 32kHz to 96kHz sampling rates at up to 24-bit, with MHR support
PERFORMANCE
Peak SPL: 120dB at 1m
Noise less than 15dB SPL
Frequency response in-room within 3dB: 20Hz to over 20Hz
AMPLIFIERS
5 x 150w (750w)
Overall distortion typically <0.02% at any frequency or level.
BASS DRIVERS
200mm x 6 polypropylene long-throw
MID DRIVER
160mm polypropylene
TWEETER
25mm (1”) aluminium composite dome tweeter, silver wire voice-coil, dual magnet, semi-hornloaded
DSP FEATURES
FIFO memory buffer input for the lowest possible jitter from almost any source.
Linear-phase mid–top crossover; 6th-order Linkwitz-Riley bass–mid crossover.
Bass protection.
All upsampling and processing performed by a 150MHz digital signal processor (DSP)
Hybrid analogue/digital volume control
Balance control with proportional delay compensation
DISPLAY
Eight-character display with additional status indicators; can be blanked during use
DIMENSIONS / WEIGHT
HEIGHT: 1350mm (Without feet/spikes)
WIDTH: 158mm tapering to 400mm
DEPTH 210mm tapering to 528mm
FOOTPRINT (W x D): 400mm x 528mm
WEIGHT: 105kg
POWER
20VA standyby; 920VA max
