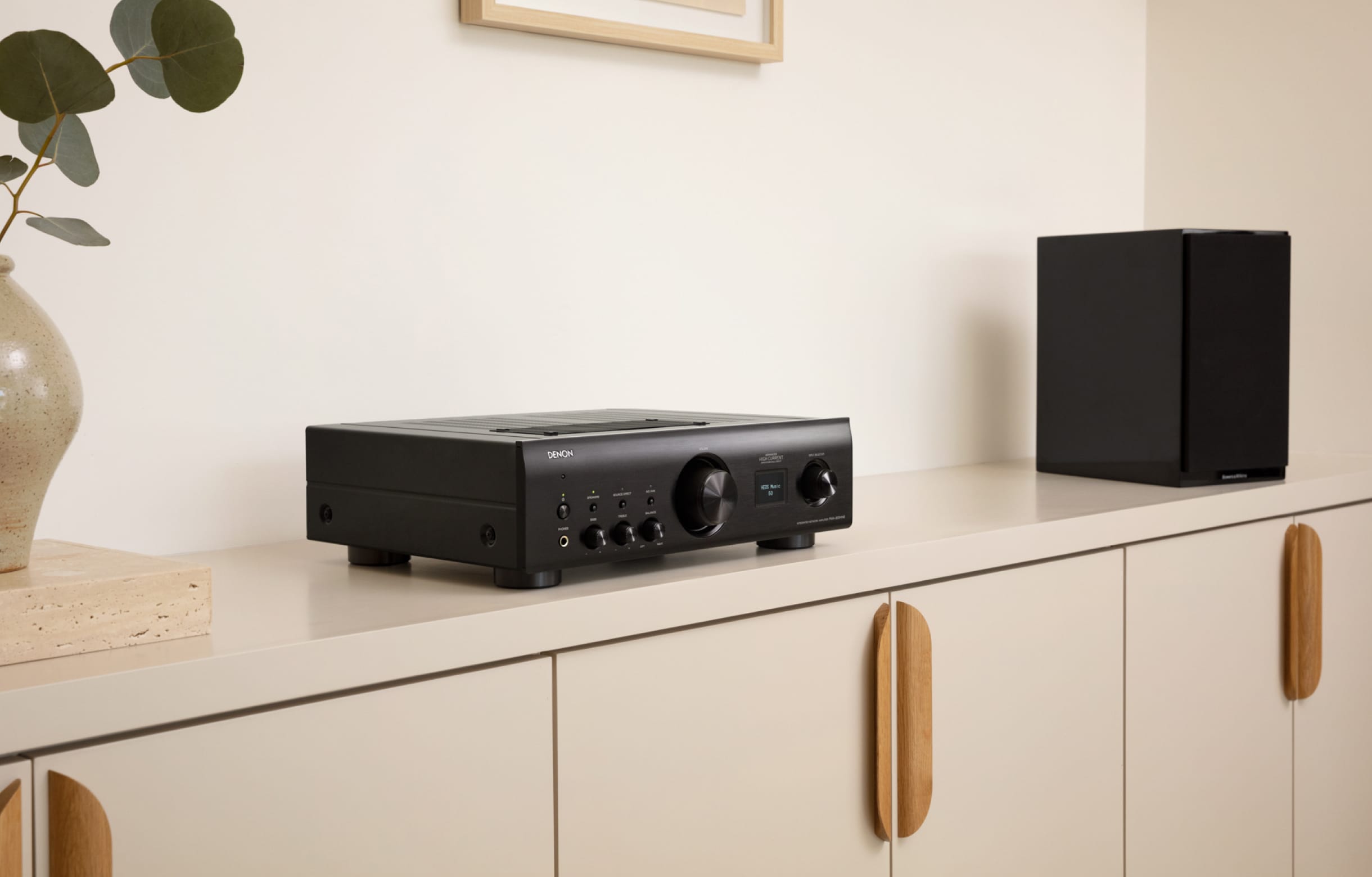

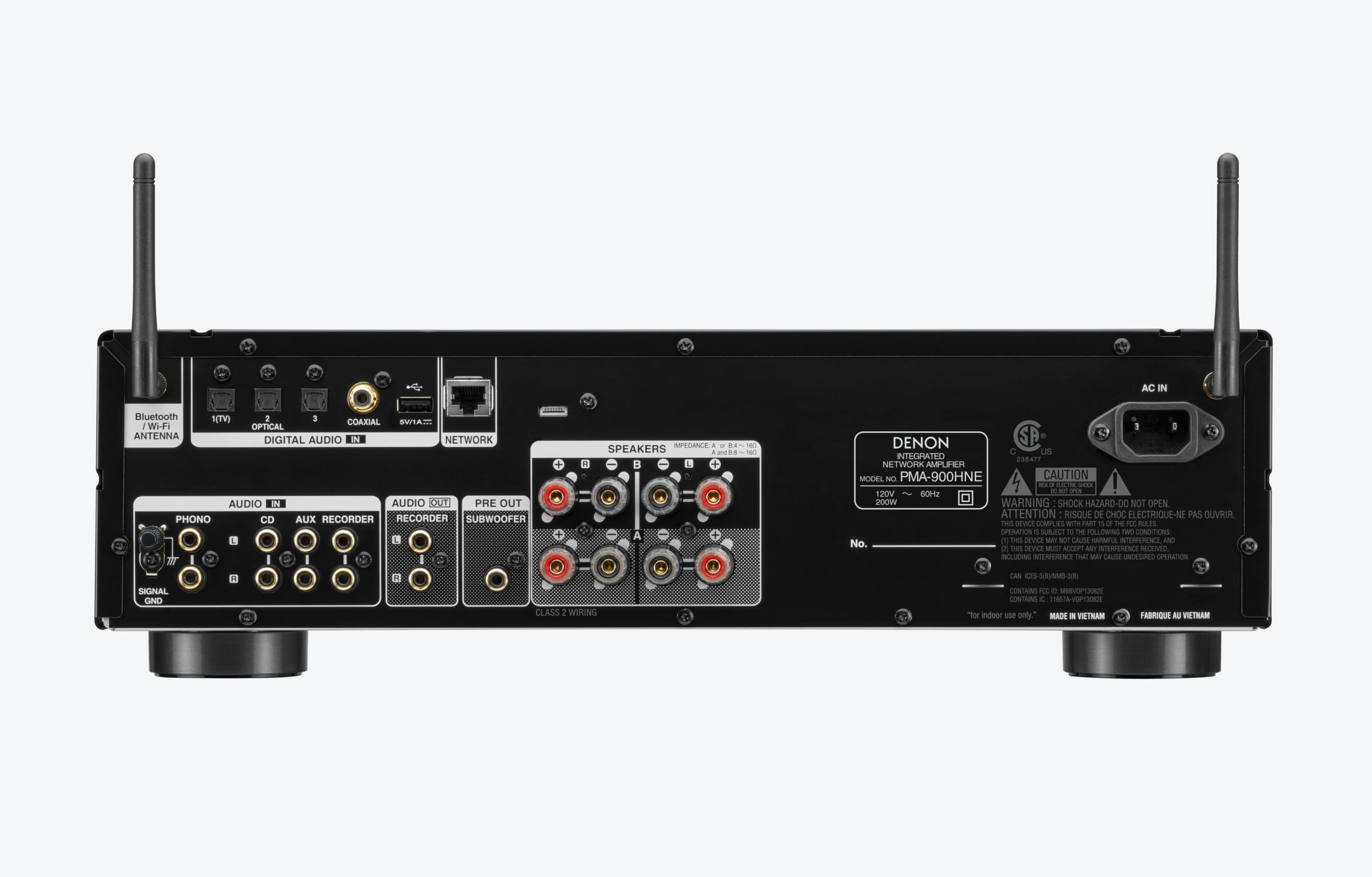

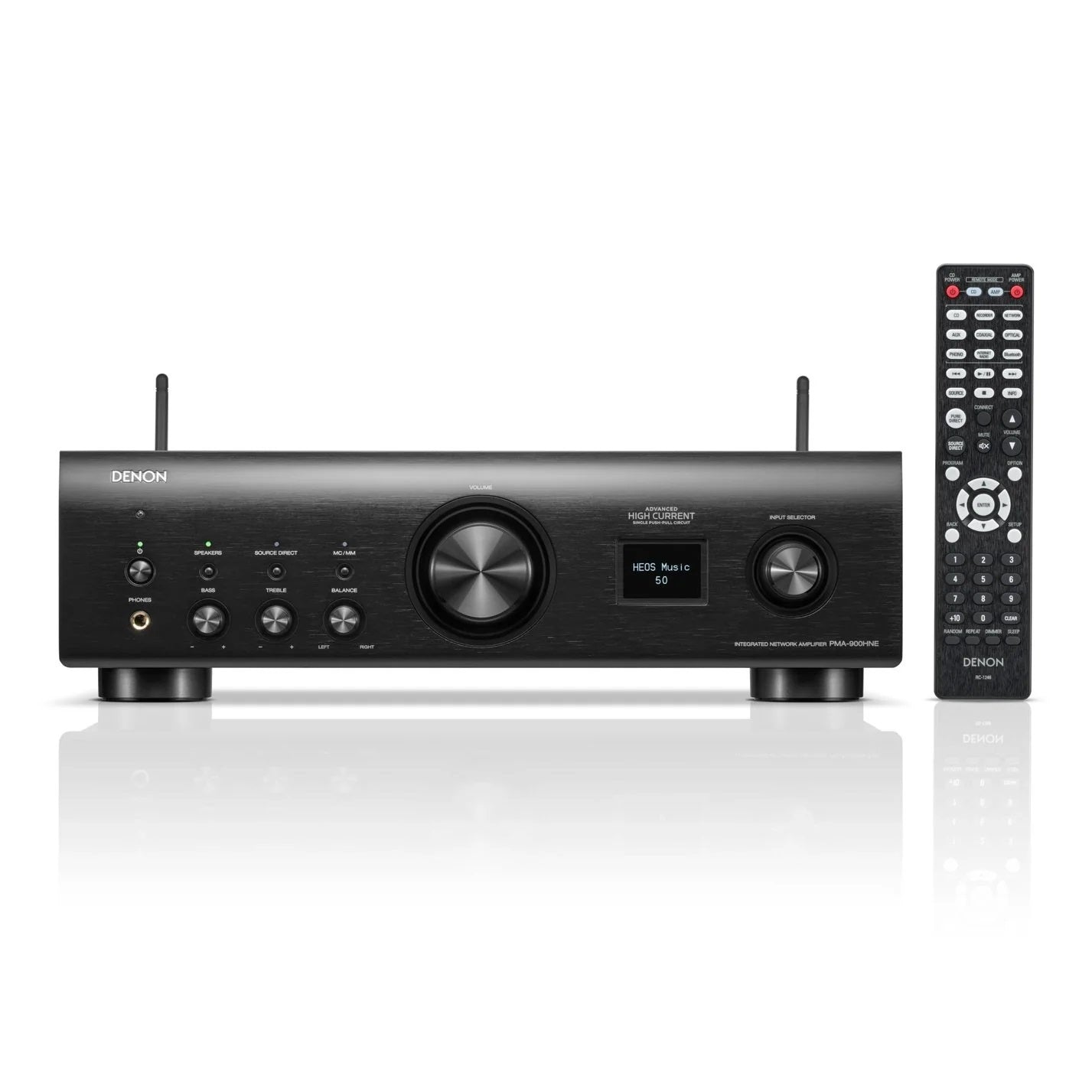

Denon PMA-900HNE Network Amplifier with HEOS® Built-in Music Streaming Black

Output power 8 Ohm (20 Hz - 20 kHz, T.H.D. 0.07%)

50W + 50W

Pre Amplifier Circuit

Variable Gain Preamplifier

Source Direct

Signal to Noise Ratio: MM/MC

86 dB / 71 dB

Treble Control

± 8 dB at 10 kHz

Output power 4 Ohm (1 kHz, T.H.D. 0.7%)

85W + 85W

Power Amplifier Circuit

Advanced HC Single Push-Pull Circuit

Volume

Electric Controlled by Encoder

Input Sensitivity: MM

2.5mV / 47 kohm

Input Sensitivity: High level

105 mV / 40kohms (Source Direct Off)

Bass Control

± 8 dB at 100 Hz

Total Harmonic Distortion

0.01% (-3dB, 8ohm, 1kHz)

Power Amp Output circuit Structure

Single Push-Pull with Darlington transistor

Bass / Treble / Mid / Balance Control

/ / /

Signal to Noise Ratio: High level

105dBDenon_PMA-900HNE_Infosheet_EU
